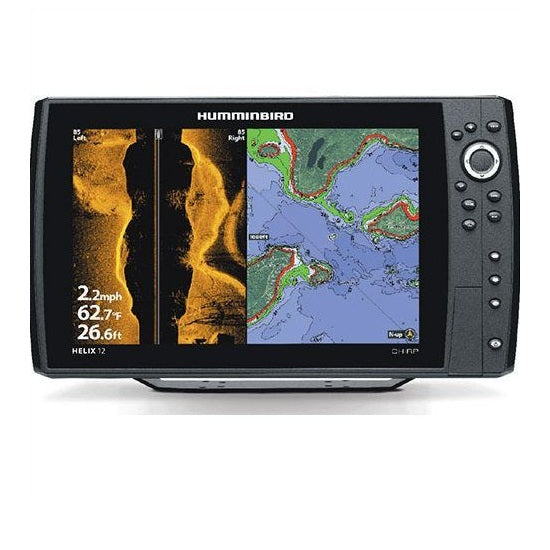

Sonar Humminbird Helix 12 Chirp Mega SI GPS G2N
Stoc epuizat
Nu s-a putut încărca disponibilitatea pentru ridicare
Descriere
Descriere
Sonarul HELIX 12 CHIRP MEGA SI GPS G2N are un ecran de 10.1" iluminat cu led-uri, si posibilitateade scanare atat verticala cat si lateralala adancimi si unghiuri foarte mari.
Include cartografierea cu GPS, functia Bluetooth, posibilitatea de retea Ethernet, scanarea automata si realizarea de harti in timp real cu adancime, vegetatie si structura substratului.
Specificatii:
Display Size - Diagonal:10.1"
Display Pixel Matrix:1280H x 800V
Display Type:Color TFT
Display Colors Grayscale:16-bit
Sonar Standard:MEGA Side Imaging/MEGA Down Imaging, CHIRP Digital Sonar/DualBeam PLUS
Standard Sonar Coverage:20°, 60° & (2) 86° & (2) 55° @ -10db (Total of 180°)
Standard Sonar Frequency:83/200/455/800 kHz & 1.2 MHz
Sonar Optional:50kHz, 50/Low Airmar CHIRP
Target Separation:2.5"
Power Output RMS:1000 Watts*
Power Output Peak to Peak:8000 Watts*
Depth Capability:125 ft(DI) 400 ft(DI-455kHz)1500 ft, 3500 ft
Temperature:Built-In Transducer
Speed:GPS Speed Included
Backlight:LED
Unit Size - Gimbal Mount:14.86"W x 8.90"H x 4.11"D
Mount A Type:Gimbal Mount
Unit Size - Indash Mount:14.86"W x 8.52"H x 3.90"D
Mounting Options:Optional In-Dash Mounting Kit
Transducer Standard:XM 9 20 MSI T
Transducer Mounting:Transom
Power Input:10.8-20 VDC
Power Draw:3.0 Amps
GPS Receiver:Included
GPS Tracking:Included
GPS Chartplotting:Included
Waypoints, Routes, Tracks/Points:2,750, 47, 50/20,000
Precision GPS:Included
SwitchFire Sonar:Included
Screen Snap Shot:Included
Sonar Recording:Included
Humminbird PC:Included
Upgradable Internal Software:Included
Split Screen Zoom:Included
Split Screen Bottom Lock: Included
3D Chart View:Included
Large Digits View:Included
Wide/Narrow Cone Split Screen:Included
Custom View Selections:Included
Custom Digital Readout:Included
View Preset Keys:Included
Temperature Graph:Included
Temperature Alarm:Included
Freeze Frame:Included
Instant Image Update:Included
Mark Structure on Sonar:Included
Selective Fish ID+:Included
Real Time Sonar:Included
Triplog:Included
X-Press Menu System:Included
Card Reader Available:Yes
Card Slots:2
Caracteristici
| Adâncime maximă de indicare | 1500 ft, 3500 ft |
|---|---|
| Diagonală display | 10.1" |
| Model display | color TFT |
| Rezoluție pixeli | 1280x800 |
| Senzor de temperatură | DA |
| Tip produs | Sonare |
