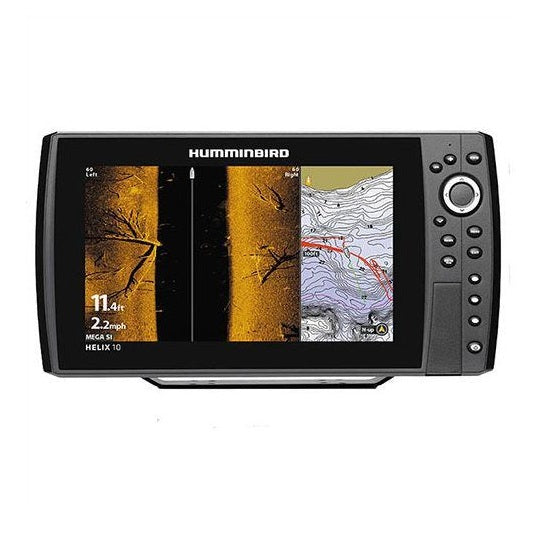

Sonar Humminbird Helix 10 Chirp Mega SI GPS G2N
Stoc epuizat
Nu s-a putut încărca disponibilitatea pentru ridicare
Descriere
Descriere
Sonarul HELIX 10 CHIRP MEGA SI GPS G2N are un ecran de 10.1" iluminat cu led-uri, si posibilitateade scanare atat verticala cat si lateralala adancimi si unghiuri foarte mari.
Include cartografierea cu GPS, functia Bluetooth, posibilitatea de retea Ethernet, scanarea automata si realizarea de harti in timp real cu adancime, vegetatie si structura substratului.
- Display Size - Diagonal:10.1"
- Display Pixel Matrix:1024H x 600V
- Display Type:Color TFT
- Display Colors Grayscale:16-bit
- Sonar Standard:MEGA Side Imaging/MEGA Down Imaging, CHIRP Digital Sonar/DualBeam PLUS
- Standard Sonar Coverage:20°, 60° & (2) 86° & (2) 55° @ -10db (Total of 180°)
- Standard Sonar Frequency:83/200/455/800 kHz & 1.2 MHz
- Sonar Optional:50kHz, 50/Low Airmar CHIRP
- Target Separation:2.5"
- Power Output RMS:1000 Watts*
- Power Output Peak to Peak:8000 Watts*
- Depth Capability:125 ft(DI) 400 ft(DI-455kHz)1500 ft, 3500 ft*
- Temperature:Built-In Transducer
- Speed:GPS Speed Included
- Backlight:LED
- Unit Size - Gimbal Mount:13.44"W x 7.12"H x 4.20"D
- Mount A Type:Gimbal Mount
- Unit Size - Indash Mount:13.44"W x 7.12"H x 3.99"D
- Mounting Options:Optional In-Dash Mounting Kit
- Transducer Standard:XM 9 20 MSI T
- Transducer Mounting:Transom
- Power Input:10.8-20 VDC
- Power Draw:2.7 Amps
- GPS Receiver:Included
- GPS Tracking:Included
- GPS Chartplotting:Included
- Waypoints, Routes, Tracks/Points:2,750, 47, 50/20,000
Caracteristici
| Adâncime maximă de indicare | 1500 ft, 3500 ft |
|---|---|
| Diagonală display | 10.1" |
| Model display | color TFT |
| Rezoluție pixeli | 1024Hx600V |
| Senzor de temperatură | DA |
| Tip produs | Sonare |
